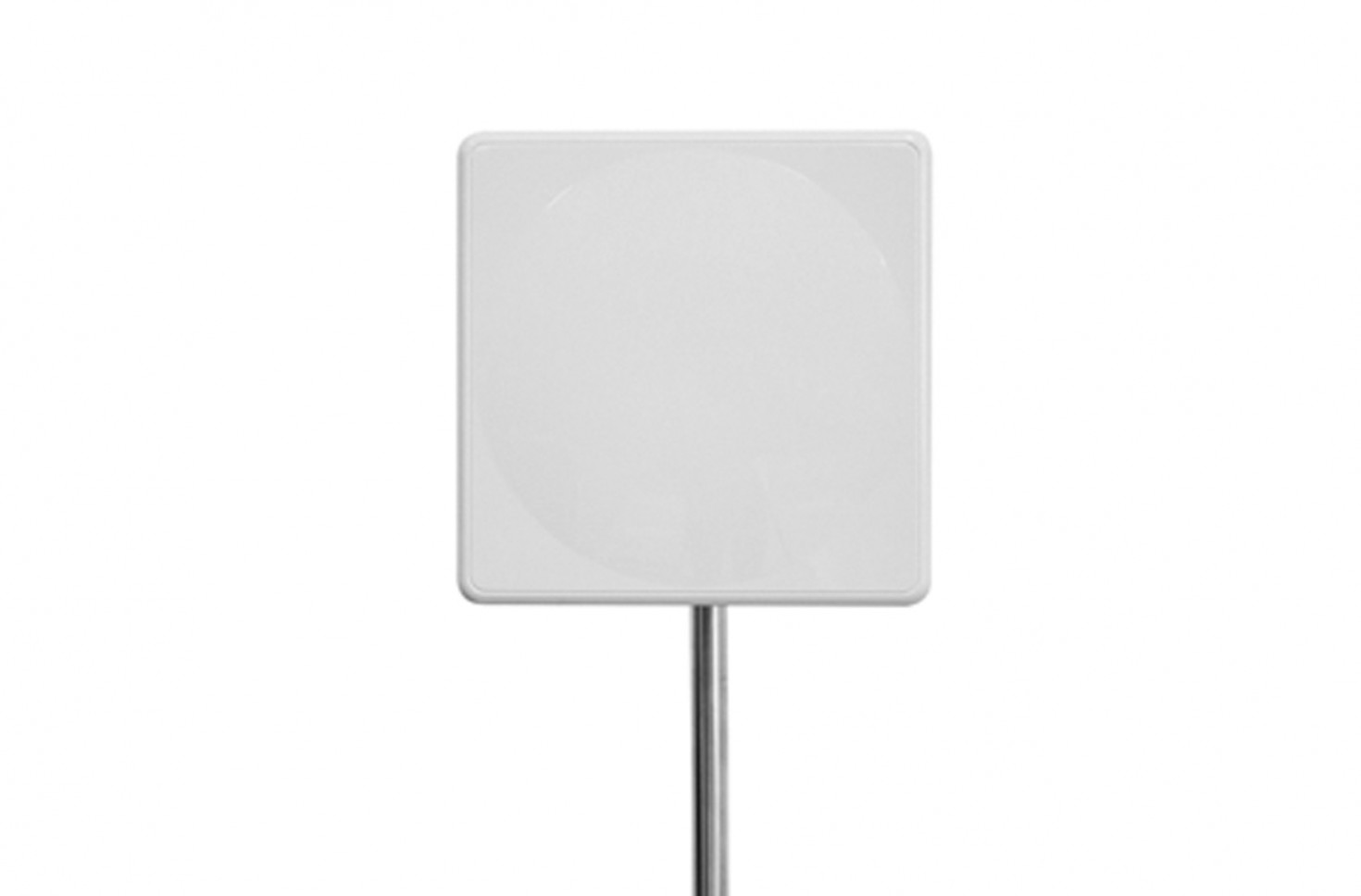

Panel Antenna
Features
  • Adopt wide-band technology, high gain, long transmission distance, fast speed, good performance
  • Small size, install and use conveniently

Specification


Antenna Gain Table

No. Part Name Dimension
W×D×H [mm]		 Frequency range
[MHz]		 Beam Width @-3dB
[deg.] typ.		 Polarization Linear @Center Freq.
[dBiL] typ.		 RHCP @Center Freq.
[dBiC] typ.
1 MACRO385-1375-NF 385×385×30 1350~1400 30 Linear 14.5 -
2 MACRO385-2300-NF 2200~2400 16 RHCP 16.0 18.0
3 MACRO385-2350-NF 2200~2500 20 Linear 20.0 -
4 MACRO385-3000-NF 2800~3200 16 RHCP 17.0 19.0
5 MACRO385-3100-NF 2900~3300 20 Linear 20.0 -
6 MACRO385-4750-NF 4500~5000 16 RHCP 17.0 19.0
7 MACRO450-4750(BW08)-NF 450×450×33 4500~50008 RHCP 20.0 22.0
8 MACRO2511-3000-NF 118×250×57 2800~3200 75(@Azi.) 25(@Ele.) RHCP 8.0 10.0
9 MACRO3511-2300-NF 115×350×57 2200~2400 85(@Azi.) 18(@Ele.) RHCP 9.0 11.0
10 MACRO2111-2300D-SF 118×216×57 2200~2400 85(@Azi.) 40(@Ele.) Dual Slant (±45) 9.0 -
