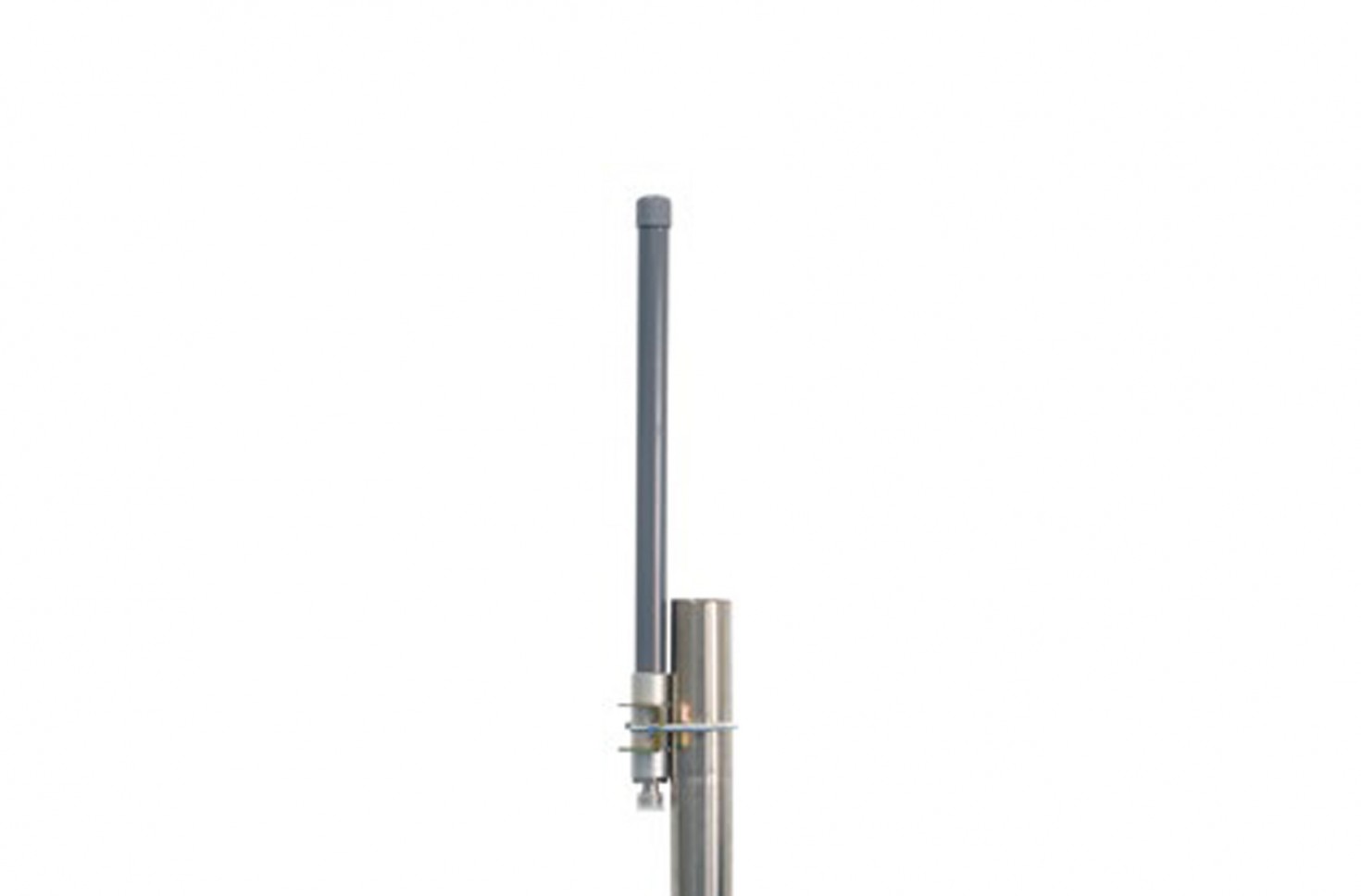

Omni Antenna
| Features |
|
|---|
Specification
Antenna Gain Table
| No. | Part Name | Dimension Φ×H [mm] |
Frequency range [MHz] |
Beam Width @-3dB [deg.] typ. |
Linear @Center Freq. [dBiL] typ. |
|---|---|---|---|---|---|
| 1 | MACRO200L-4750-NM | Φ20×200 | 4500~5000 | 30 | 6.0 |
| 2 | MACRO230L-3000-NM | Φ20×230 | 2800~3200 | 35 | 4.0 |
| 3 | MACRO300L-3000-NM | Φ20×300 | 2800~3200 | 25 | 6.0 |
| 4 | MACRO650L-3000-NM | Φ20×650 | 2800~3200 | 9 | 9.0 |
