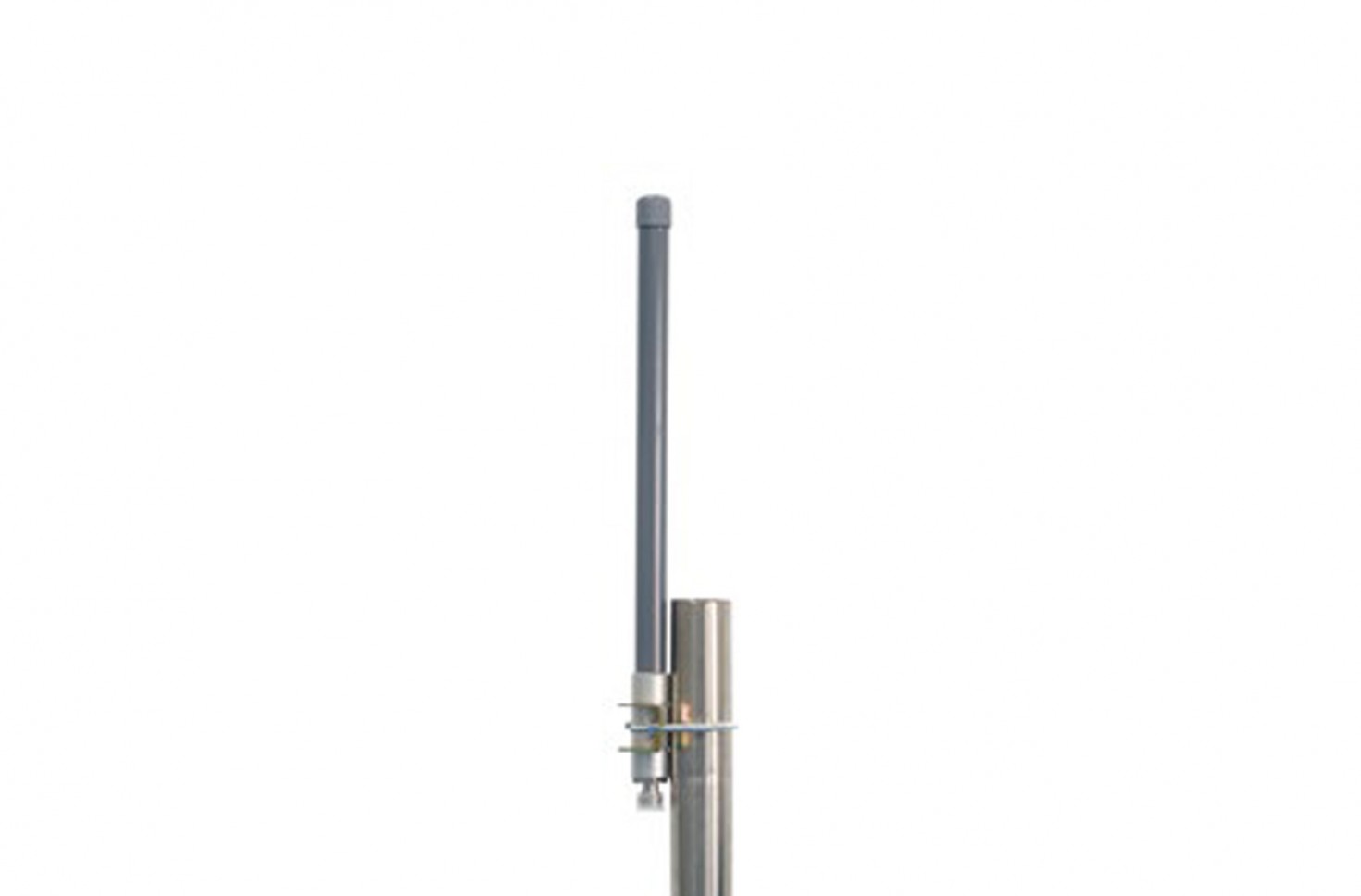

Omni Antenna
Features
  • Stable performance
  • High quality fiberglass radome, strong protection
  • Environmental adaptability

Specification


Antenna Gain Table

No. Part Name Dimension
Φ×H [mm]		 Frequency range
[MHz]		 Beam Width @-3dB
[deg.] typ.		 Linear @Center Freq.
[dBiL] typ.
1 MACRO200L-4750-NM Φ20×200 4500~5000 30 6.0
2 MACRO230L-3000-NM Φ20×230 2800~3200 35 4.0
3 MACRO300L-3000-NM Φ20×300 2800~3200 25 6.0
4 MACRO650L-3000-NM Φ20×650 2800~3200 9 9.0
