GPS Antenna

Features
  • GPS / GPS Dual Passive Antenna
  • GPS L1/L2 band
  • Provide highly stabilized performance
  • Rectangular microstrip patch antenna
  • GPS / GPS Dual Active Antenna
  • GPS/GLONASS band
  • Provide highly stabilized performance
  • Rectangular microstrip patch antenna
  • Low noise figure

Specification

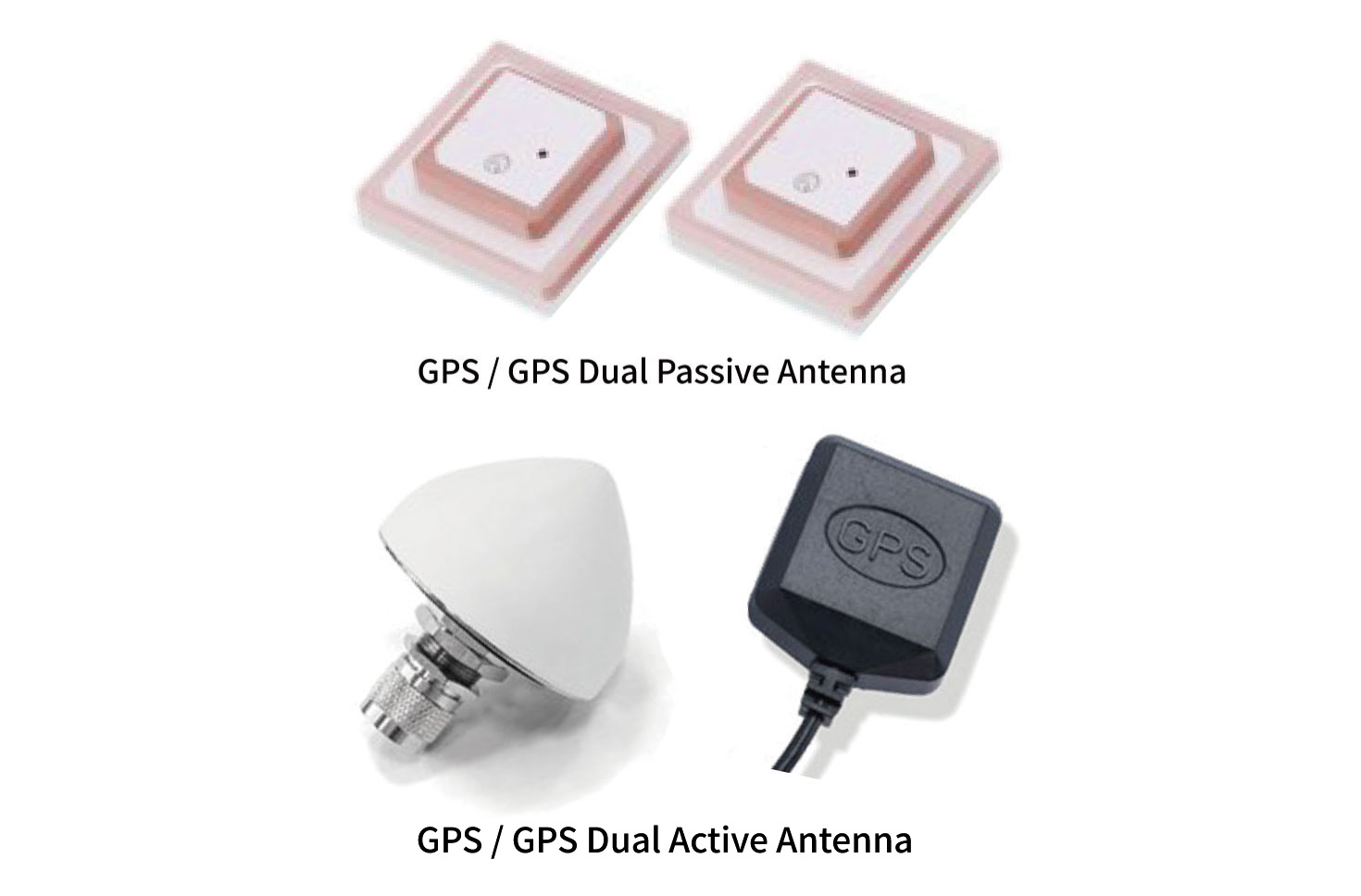

GPS / GPS Dual Passive Antenna

No. Part Name Dimension
W×D×H [mm]		 Center Frequency
[MHz]		 L1 Band Width @-10dB
[MHz] typ.		 L2 Band Width @-10dB
[MHz] typ.		 L1 RHCP @Center Freq.
[dBiC] typ.		 L2 RHCP @Center Freq.
[dBiC] typ.		 Remark
1 MPACD25_38SGL1_L2A-T 38×38×8.2 1575, 1227 34 12 4.0 4.0 @70×70 GND.

※ Have GPS ceramic patch antennas of various sizes


GPS / GPS Dual Active Antenna

No. Part Name Dimension
W×D×H [mm]		 Frequency
[MHz]		 Band Width @-10dB
[MHz] typ.		 RHCP @Center Freq.
[dBiC] typ.		 LNA Gain
[dB] typ.		 Noise Figure
[dB] typ.		 Voltage
[V]		 Current
[mA]
1 MACRO-GPS 34×37×11 1575 10 2.0 30.0 1.5 3~5 16 max.
2 MACRO-GPS/GLONASS Φ67.5×77.3 1561~1602 42 4.0 40.0 2.5 2.7~10 25 max.
