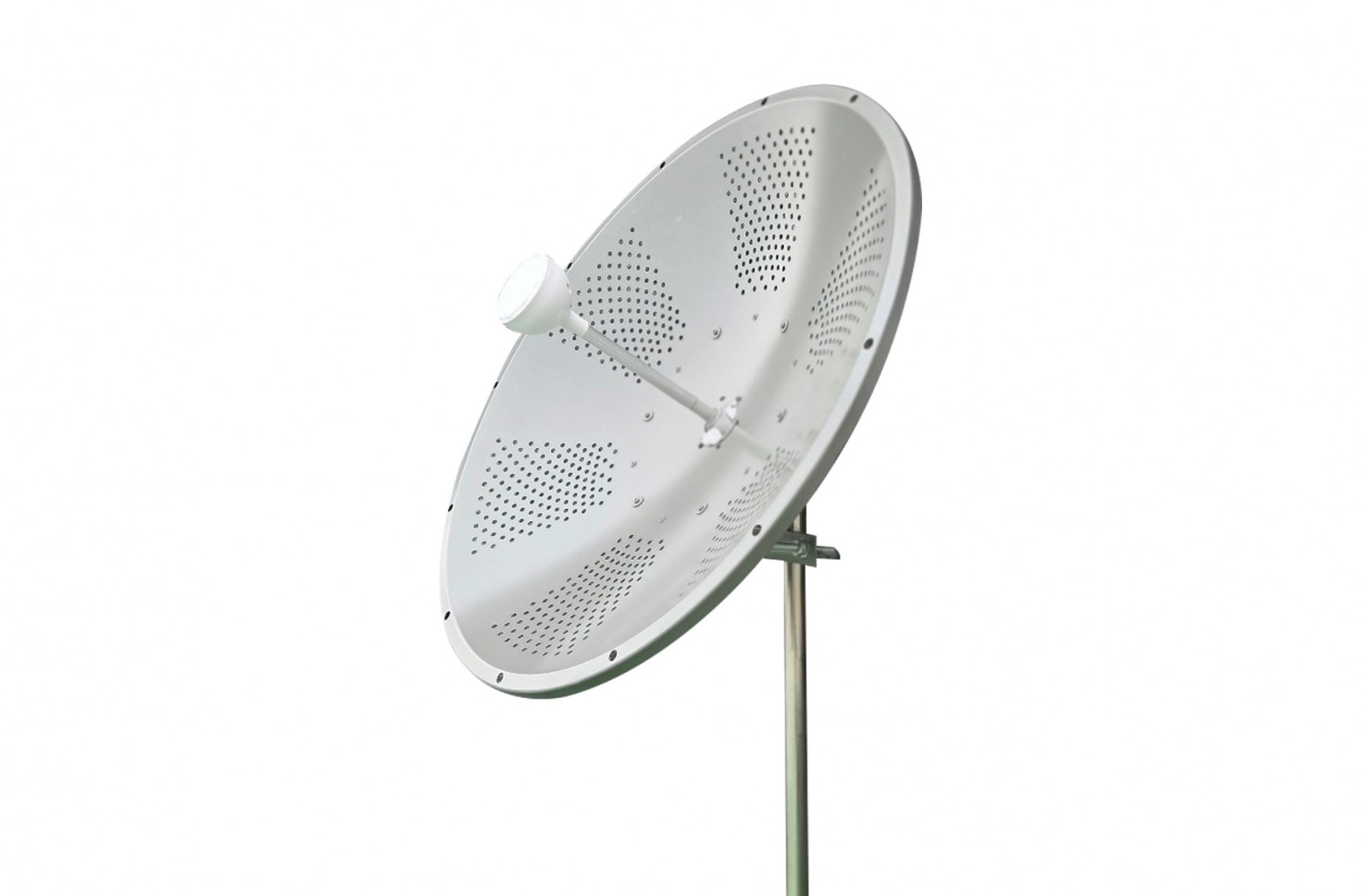

Dish Antenna
Features
  • High gain
  • Narrow beamwidth
  • High directivity
  • Provide highly stabilized performance

Specification


Antenna Gain Table

No. Part Name Dimension
Φ [mm]		 Frequency range
[MHz]		 Beam Width @-3dB
[deg.] typ.		 Polarization RHCP @Center Freq.
[dBiC] typ.
1 MACRO900DP-5150-NF Φ950 5050~5250 5 RHCP 30.0
2 MACRO1200MP-3000-NF Φ1200 2800~3200 4.5 RHCP 26.0
